ABPP
BATH-WC TYPE FAN WITH OUTER SHUTTER
It has a square frame made of PVC material, is silent and resistant to corrosion, and has the ability to work in two directions.

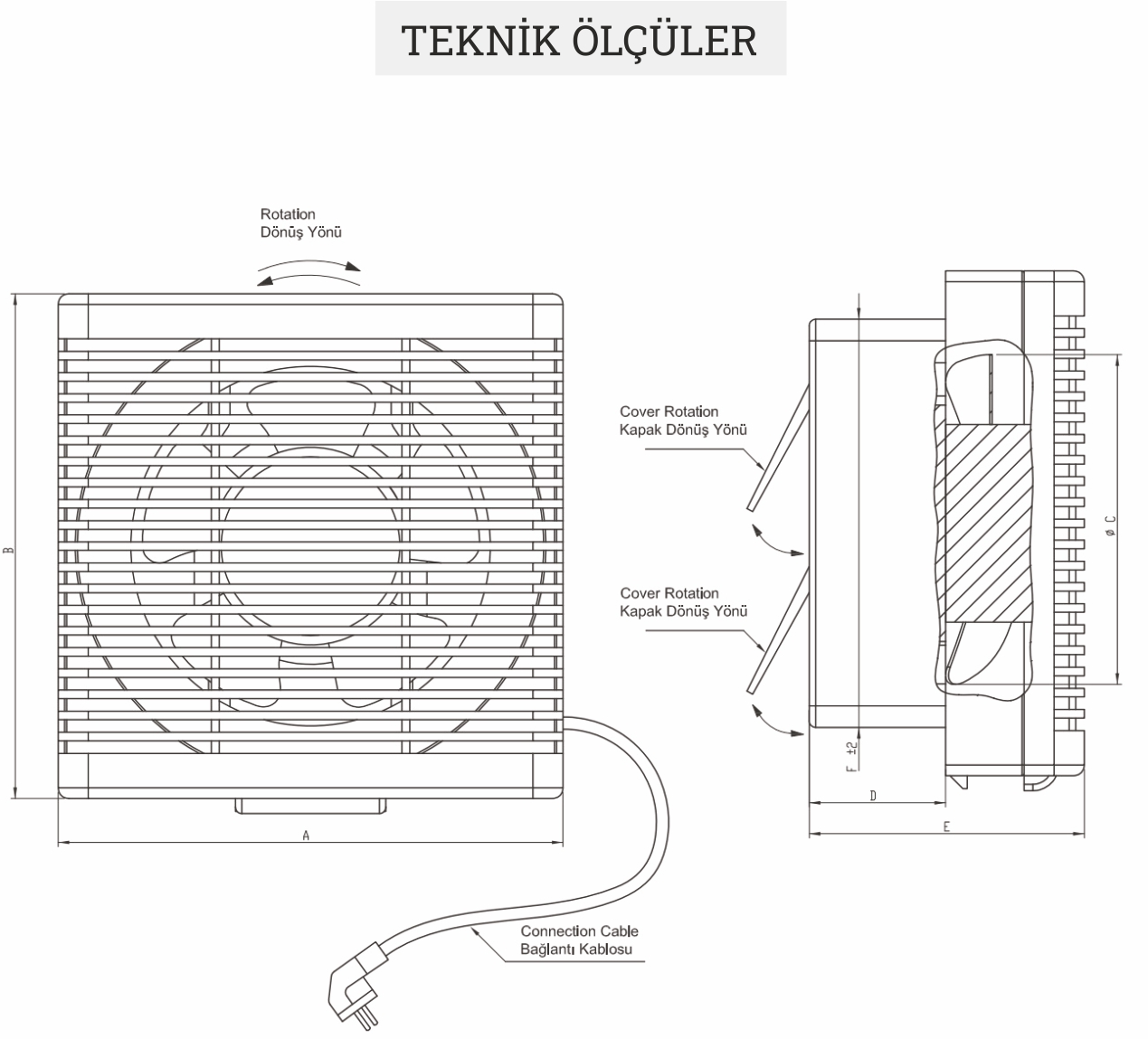

| Type / Code | Electric Motor | Air Flow | DIMENSIONS ( mm ) | ||||
| Voltage | Power | Speed | ( Max. ) | ||||
| ( V ) | ( W ) | ( RPM ) | ( m³/h ) | A | E | F | |
| ABPP-15-M-4K | 220 | 25 | 1.300 | 300 | 235 | 130 | 190 |
| ABPP-20-M-4K | 220 | 30 | 1.250 | 500 | 290 | 140 | 240 |
| ABPP-25-M-4K | 220 | 35 | 1.200 | 735 | 340 | 145 | 290 |
| ABPP-30-M-4K | 220 | 45 | 1.100 | 1.100 | 395 | 155 | 335 |
