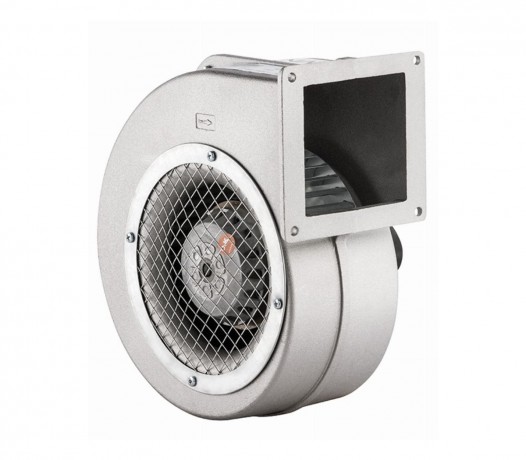

BDRAS Series Centrifugal Fan
Fan Components and Features
Centrifugal fans have low noise level, high pressure characteristics. Thanks to their compact structure, they save space. The body is made of die-cast aluminum and is resistant to corrosion and corrosion. The motor and fan impeller are connected to the main body with steel carriers. The device has the feature of carrying air at a maximum temperature of 40ºC.
Usage Areas
Fans especially in industrial and commercial areas; It is generally used in local cooling applications and heating systems. It is preferred in cases where the advantage of aluminum rigid body can be used, such as cooling of machines, air supply in solid fuel boilers, yacht air conditioners, electrical panels.
| TYPE | Voltage | Frequency | Power | Amper | Speed(rpm) | Air Flow | Volume | Weight |
| BDRAS 85-40 | 230 | 50 | 30 | 0,13 | 2500 | 90 | 40 | 1,2 |
| BDRAS 108-50 | 230 | 50 | 40 | 0,19 | 1900 | 155 | 42 | 1,7 |
| BDRAS 120-60 | 230 | 50 | 80 | 2.5 | 2450 | 380 | 60 | 2.1 |
| BDRAS 140-60 | 230 | 50 | 140 | 4 | 2265 | 590 | 68 | 2.9 |
| BDRAS 160-60 | 230 | 50 | 190 | 5 | 2100 | 720 | 72 | 4.1 |

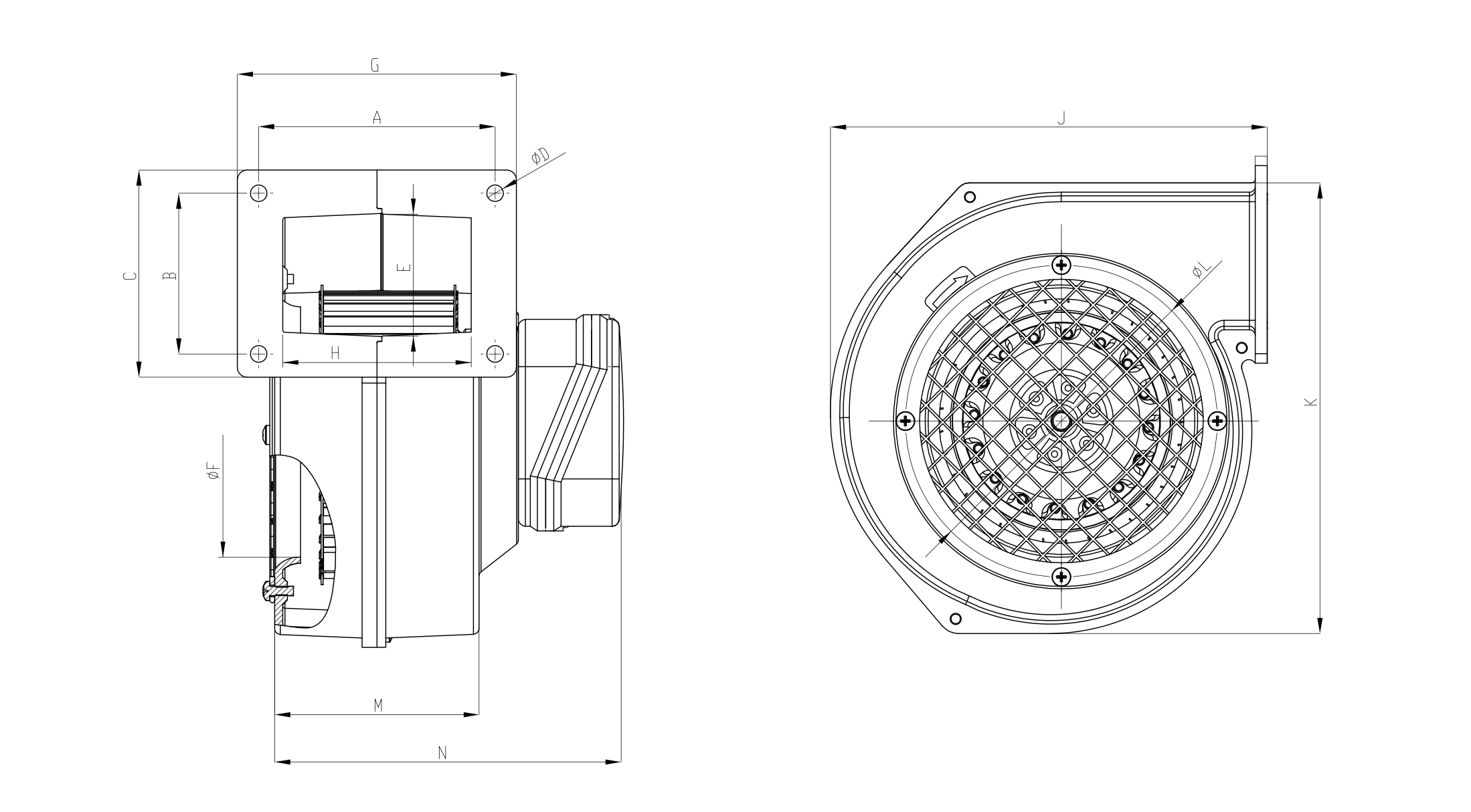

| TYPE | A | B | C | D | E | F | G | H | J | K | L | M | N |
| BDRAS 85-40 | 66 | 58 | 70 | 5,5 | 42 | 63 | 76 | 56 | 117,5 | 127,5 | 84 | 80 | 120 |
| BDRAS 108-50 | 96,5 | 65 | 85 | 7 | 50 | 87 | 115 | 76 | 159 | 183 | 118 | 82 | 122 |
| BDRAS 120-60 | 99 | 67,5 | 88 | 7 | 49 | 103,5 | 118,5 | 80 | 190 | 184 | 122 | 87 | 145 |
| BDRAS 140-60 | 123 | 84 | 122 | 7 | 78 | 110 | 154 | 79 | 197 | 203 | 147 | 100 | 151 |
| BDRAS 160-60 | 114 | 105 | 123 | 7 | 90 | 117,5 | 130 | 93,5 | 229 | 248 | 164 | 100 | 135 |
