RECTANGULAR DUCT FANS WITH BACK CURVES SPARSE BLADES

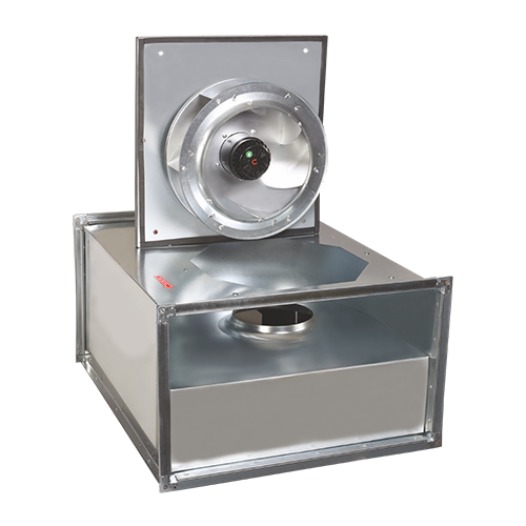

DTDF are duct fans that work silently thanks to their aerodynamic structure, they have the feature of easy cleaning and maintenance by opening the cover without being removed from the place of installation. It does not take up space as it can be mounted between the ducts and is designed to meet medium and high volume ventilation needs.

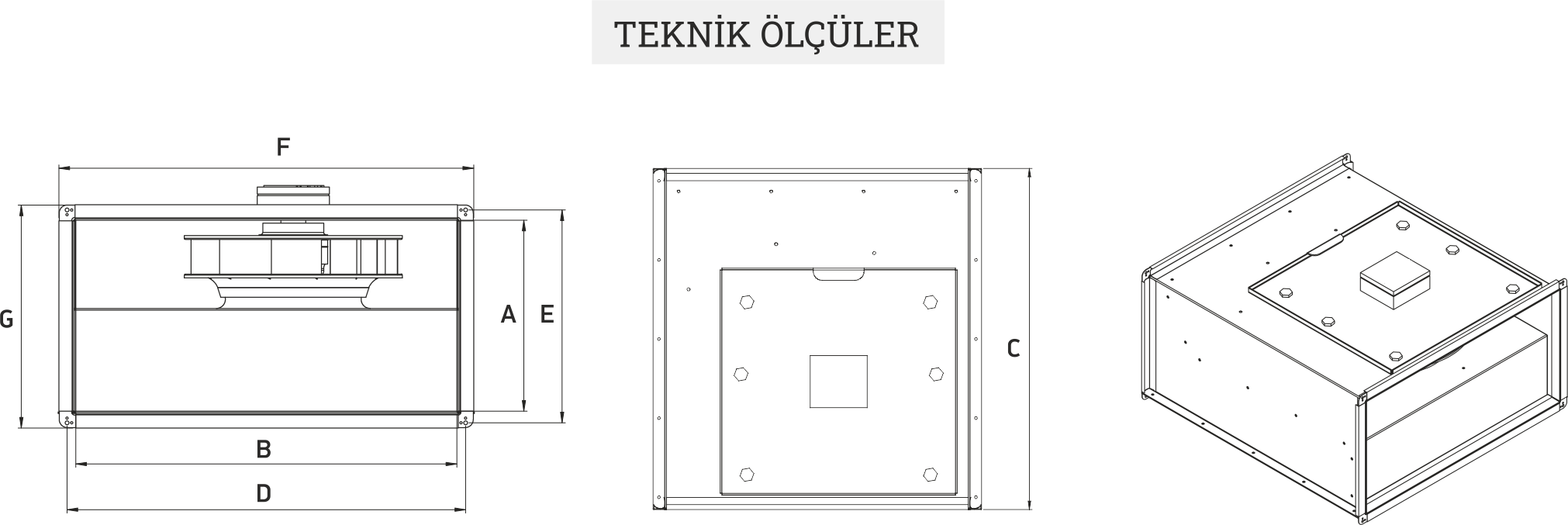

| Type / Code | Electric Motor | Air Flow | CAPACITY TABLE ( m³/h ) | DIMENSIONS ( mm ) | ||||||||||||||
| Volt | Power | RPM | ( Max ) | |||||||||||||||
| ( V ) | ( W ) | ( d/d ) | ( m³/h ) | 0 Pa | 100 Pa | 200 Pa | 300 Pa | 400 Pa | 500 Pa | 600 Pa | 700 Pa | 800 Pa | A | B | C | F | G | |
| EDKF-30x15-M-2K | 220 | 95 | 2.280 | 480 | 480 | 400 | 275 | 150 |
|
|
|
|
| 150 | 300 | 400 | 350 | 200 |
| EDKF-40x20A-M-2K | 220 | 104 | 2.645 | 950 | 950 | 840 | 700 | 530 | 360 | 120 |
|
|
| 200 | 400 | 500 | 450 | 250 |
| EDKF-40x20B-M-2K | 220 | 145 | 2.635 | 1.150 | 1.150 | 975 | 825 | 650 | 460 | 275 | 50 |
|
| 200 | 400 | 500 | 450 | 250 |
| EDKF-50x25-M-2K | 220 | 210 | 2.660 | 1.610 | 1.610 | 1.465 | 1.220 | 1.100 | 910 | 675 | 500 | 100 |
| 250 | 500 | 565 | 550 | 300 |
| EDKF-60x30-M-4K | 220 | 135 | 1.400 | 1.850 | 1.850 | 1.450 | 975 | 400 |
|
|
|
|
| 300 | 600 | 650 | 650 | 350 |
| EDKF-60x35A-M-4K | 220 | 260 | 1.350 | 2.800 | 2.800 | 2.400 | 1.800 | 1.200 | 400 |
|
|
|
| 350 | 600 | 760 | 650 | 400 |
| EDKF-60x35B-M-4K | 220 | 430 | 1.380 | 3.400 | 3.400 | 2.800 | 2.250 | 1.550 | 875 | 20 |
|
|
| 350 | 600 | 760 | 650 | 400 |
| EDKF-70x40A-M-4K | 220 | 600 | 1.340 | 4.500 | 4.500 | 3.800 | 3.200 | 2.400 | 1.600 | 500 |
|
|
| 400 | 700 | 800 | 750 | 450 |
| EDKF-70x40B-M-4K | 220 | 600 | 1.340 | 5.900 | 5.900 | 5.300 | 4.750 | 4.000 | 3.200 | 2.250 | 1.000 |
|
| 400 | 700 | 800 | 750 | 450 |
| EDKF-80x50-M-4K | 220 | 600 | 1.340 | 7.550 | 7.550 | 6.900 | 6.150 | 5.400 | 4.500 | 3.600 | 2.700 | 1.800 | 600 | 500 | 800 | 920 | 850 | 560 |
| EDKF-100x50-T-4K | 380 | 1.100 | 1.400 | 9.600 | 9.600 | 8.900 | 8.250 | 7.500 | 6.600 | 5.300 | 4.900 | 3.750 | 2.250 | 500 | 1000 | 1050 | 1060 | 560 |
