EDMP

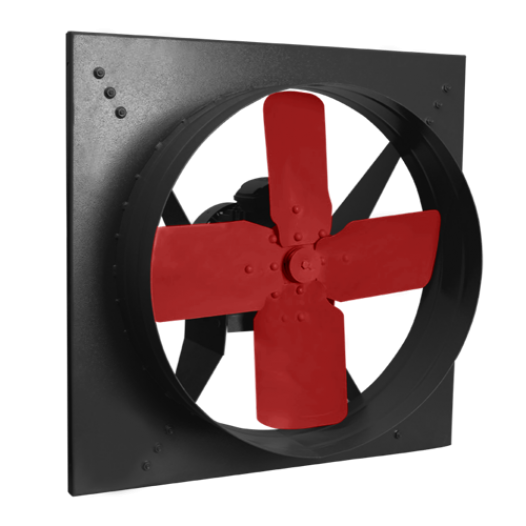

4-BLADE, METAL IMPELLER, SQUARE CASE AXIAL FAN
EDMP can be mounted on the wall and window, provide strong air flow with low noise.

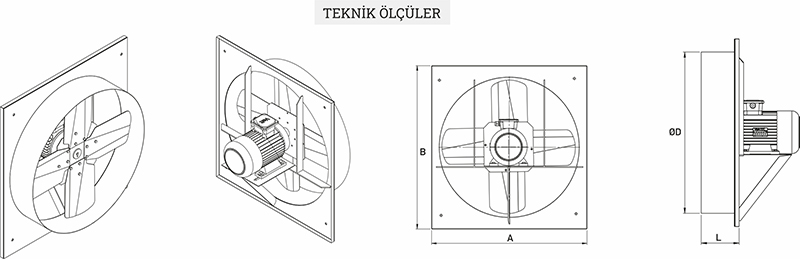

| Type / Code | Electric Motor | Air Flow | DIMENSIONS ( mm ) | ||||
| Voltage | Power | Speed | ( Max. ) | ||||
| ( V ) | ( HP ) | ( kW ) | ( RPM ) | ( m³/h ) | D | D1 | |
| EDMP-300-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 3.500 | 450 | 300 |
| EDMP-350-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 4.000 | 500 | 350 |
| EDMP-400-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 5.000 | 550 | 400 |
| EDMP-450-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 6.000 | 600 | 450 |
| EDMP-500-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 8.000 | 650 | 500 |
| EDMP-550-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 10.000 | 700 | 550 |
| EDMP-600-1,50-T-4K | 380 | 1,50 | 1,10 | 1.430 | 12.000 | 750 | 600 |
| EDMP-650-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 14.000 | 800 | 650 |
| EDMP-700-3,00-T-4K | 380 | 3,00 | 2,20 | 1.435 | 16.000 | 850 | 700 |
| EDMP-750-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 20.000 | 900 | 750 |
| EDMP-800-5,50-T-4K | 380 | 5,50 | 4,00 | 1.455 | 25.000 | 950 | 800 |
| EDMP-900-7,50-T-4K | 380 | 7,50 | 5,50 | 1.465 | 35.000 | 1.050 | 900 |
| EDMP-1000-7,50-T-6K | 380 | 7,50 | 5,50 | 960 | 40.000 | 1.150 | 1.000 |
| EDMP-1100-7,50-T-6K | 380 | 7,50 | 5,50 | 960 | 45.000 | 1.250 | 1.100 |
| EDMP-1200-10,0-T-6K | 380 | 10,0 | 7,50 | 960 | 50.000 | 1.350 | 1.200 |
