EKAP

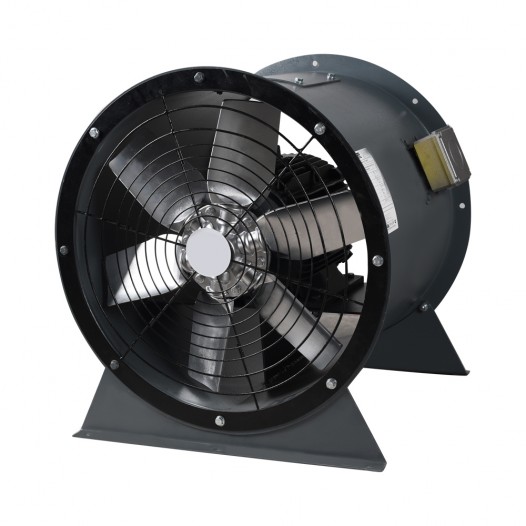

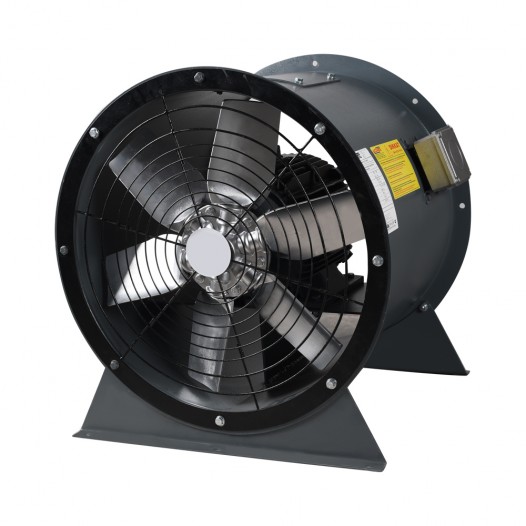

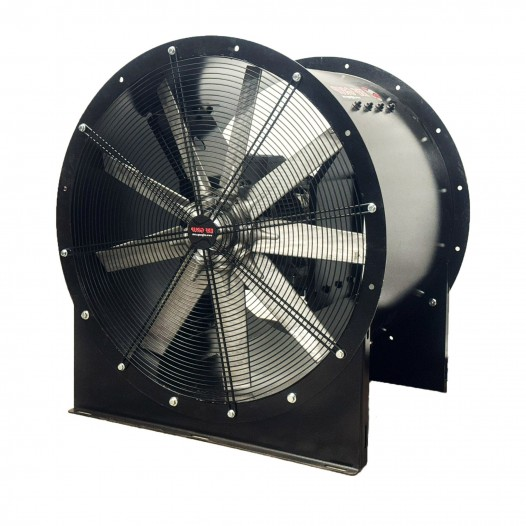

ALUMINUM IMPELLER, DIRECTLY DRIVEN, TUBE AXIAL FAN
The impellers of EKAP axial tube fans, which can meet high air flow rates and high pressure losses, are made of aluminum raw material and they provide the chance to change the flow and pressure by adjusting the blade angles.
They can be produced with a motor that can withstand temperatures of 200, 300, 400 °C for 120 minutes upon request.
| Type / Code | Electric Motor | Air Flow | |||
| Voltage | Power | Speed | ( Max. ) | ||
| ( V ) | ( HP ) | ( kW ) | (RPM) | ( m³/h ) | |
| EKAP-300-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 3.000 |
| EKAP-350-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 3.500 |
| EKAP-400-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 4.500 |
| EKAP-400-0,75-T-4K | 380 | 0,75 | 0,55 | 1.380 | 5.000 |
| EKAP-450-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 6.000 |
| EKAP-450-0,75-T-4K | 380 | 0,75 | 0,55 | 1.380 | 6.500 |
| EKAP-500-0,75-T-4K | 380 | 0,75 | 0,55 | 1.380 | 8.000 |
| EKAP-500-1,00-T-4K | 380 | 1,00 | 0,75 | 1.380 | 9.500 |
| EKAP-560-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 9.600 |
| EKAP-560-1,50-T-4K | 380 | 1,50 | 1,10 | 1.410 | 12.000 |
| EKAP-630-1,50-T-4K | 380 | 1,50 | 1,10 | 1.410 | 12.250 |
| EKAP-630-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 14.500 |
| EKAP-710-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 16.000 |
| EKAP-710-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 22.000 |
| EKAP-800-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 23.500 |
| EKAP-800-7,50-T-4K | 380 | 7,50 | 5,50 | 1.455 | 34.000 |
| EKAP-900-5,50-T-4K | 380 | 5,50 | 4,00 | 1.455 | 27.500 |
| EKAP-900-10,0-T-4K | 380 | 10,0 | 7,50 | 1.465 | 40.000 |
| EKAP-1000-10,0-T-4K | 380 | 10,0 | 7,50 | 1.465 | 43.000 |
| EKAP-1000-15,0-T-4K | 380 | 15,0 | 11,0 | 1.470 | 53.000 |
| EKAP-1100-15,0-T-4K | 380 | 15,0 | 11,0 | 1.470 | 65.000 |
| EKAP-1100-20,0-T-4K | 380 | 20,0 | 15,0 | 1.470 | 77.000 |
| EKAP-1200-25,0-T-4K | 380 | 25,0 | 18,5 | 1.470 | 95.000 |
| EKAP-1200-30,0-T-4K | 380 | 30,0 | 22,0 | 1.470 | 100.000 |
| Type / Code | DIMENSIONS ( mm ) | ||
| D | D1 | L | |
| EKAP-300-0,50-T-4K | 300 | 370 | 300 |
| EKAP-350-0,50-T-4K | 350 | 420 | 325 |
| EKAP-400-0,50-T-4K | 400 | 470 | 350 |
| EKAP-400-0,75-T-4K | 400 | 470 | 350 |
| EKAP-450-0,50-T-4K | 450 | 520 | 400 |
| EKAP-450-0,75-T-4K | 450 | 520 | 400 |
| EKAP-500-0,75-T-4K | 500 | 570 | 400 |
| EKAP-500-1,00-T-4K | 500 | 570 | 400 |
| EKAP-560-1,00-T-4K | 560 | 630 | 450 |
| EKAP-560-1,50-T-4K | 560 | 630 | 450 |
| EKAP-630-1,50-T-4K | 630 | 700 | 475 |
| EKAP-630-2,00-T-4K | 630 | 700 | 475 |
| EKAP-710-2,00-T-4K | 710 | 780 | 525 |
| EKAP-710-4,00-T-4K | 710 | 780 | 525 |
| EKAP-800-4,00-T-4K | 800 | 870 | 550 |
| EKAP-800-7,50-T-4K | 800 | 870 | 550 |
| EKAP-900-5,50-T-4K | 900 | 970 | 600 |
| EKAP-900-10,0-T-4K | 900 | 970 | 600 |
| EKAP-1000-10,0-T-4K | 1.000 | 1.100 | 600 |
| EKAP-1000-15,0-T-4K | 1.000 | 1.100 | 600 |
| EKAP-1100-15,0-T-4K | 1.100 | 1.200 | 700 |
| EKAP-1100-20,0-T-4K | 1.100 | 1.200 | 700 |
| EKAP-1200-25,0-T-4K | 1.200 | 1.300 | 750 |
| EKAP-1200-30,0-T-4K | 1.200 | 1.300 | 750 |
