ERF-CAT

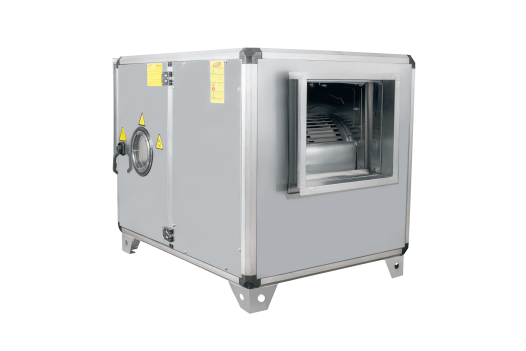

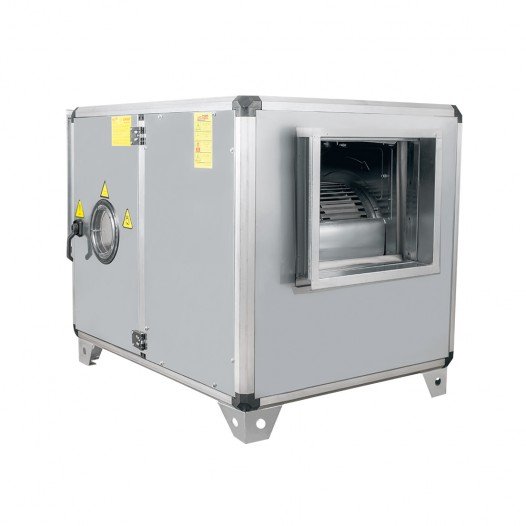

BELT-PULLEY SYSTEM, DRIVE MECHANISM, FORWARD CURVED AND DENSE BLADES, DOUBLE SUCTION RADIAL FAN CELL ASPIRATOR
ERF-CAT double suction centrifugal cell fans are produced in different sizes between 1.000m³/h and 20.000 m³/h flow rates. Cell panels are 20 mm thick and 70 kg/m³ density rock wool insulated. They provide maximum efficiency with low energy and vibration-free operation.
SPEED CONTROL
It is obtained by belt pulley system.
USAGE AREAS
Workplaces, offices, factories, hospitals, restaurants, meeting rooms, supermarkets, shopping malls, etc.
| Type / Code | Fan Type | Electic Motor | Max. Air Flow | Pressure Loss | |||
| Volt | Power | RPM | |||||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | ||
| ERF-CAT-07-1,00-T-4K | 07/07 | 380 | 1,00 | 0,75 | 1.410 | 2.250 | 400 |
| ERF-CAT-07-1,50-T-4K | 1,50 | 1,10 | 1.430 | 2.800 | 400 | ||
| ERF-CAT-09-1,50-T-4K | 09/09 | 380 | 1,50 | 1,10 | 1.430 | 4.000 | 350 |
| ERF-CAT-09-2,00-T-4K | 2,00 | 1,50 | 1.430 | 5.000 | 225 | ||
| ERF-CAT-10-2,00-T-4K | 10/10 | 380 | 2,00 | 1,50 | 1.430 | 5.500 | 325 |
| ERF-CAT-10-3,00-T-4K | 3,00 | 2,20 | 1.435 | 6.500 | 325 | ||
| ERF-CAT-12-3,00-T-4K | 12/12 | 380 | 3,00 | 2,20 | 1.435 | 7.500 | 400 |
| ERF-CAT-12-4,00-T-4K | 4,00 | 3,00 | 1.435 | 8.500 | 450 | ||
| ERF-CAT-15-4,00-T-4K | 15/15 | 380 | 4,00 | 3,00 | 1.435 | 10.000 | 450 |
| ERF-CAT-15-5,50-T-4K | 5,50 | 4,00 | 1.455 | 12.000 | 400 | ||
| ERF-CAT-18-7,50-T-4K | 18/18 | 380 | 7,50 | 5,50 | 1.465 | 18.000 | 300 |
| ERF-CAT-18-10,0-T-4K | 10,0 | 7,50 | 1.465 | 20.000 | 375 | ||

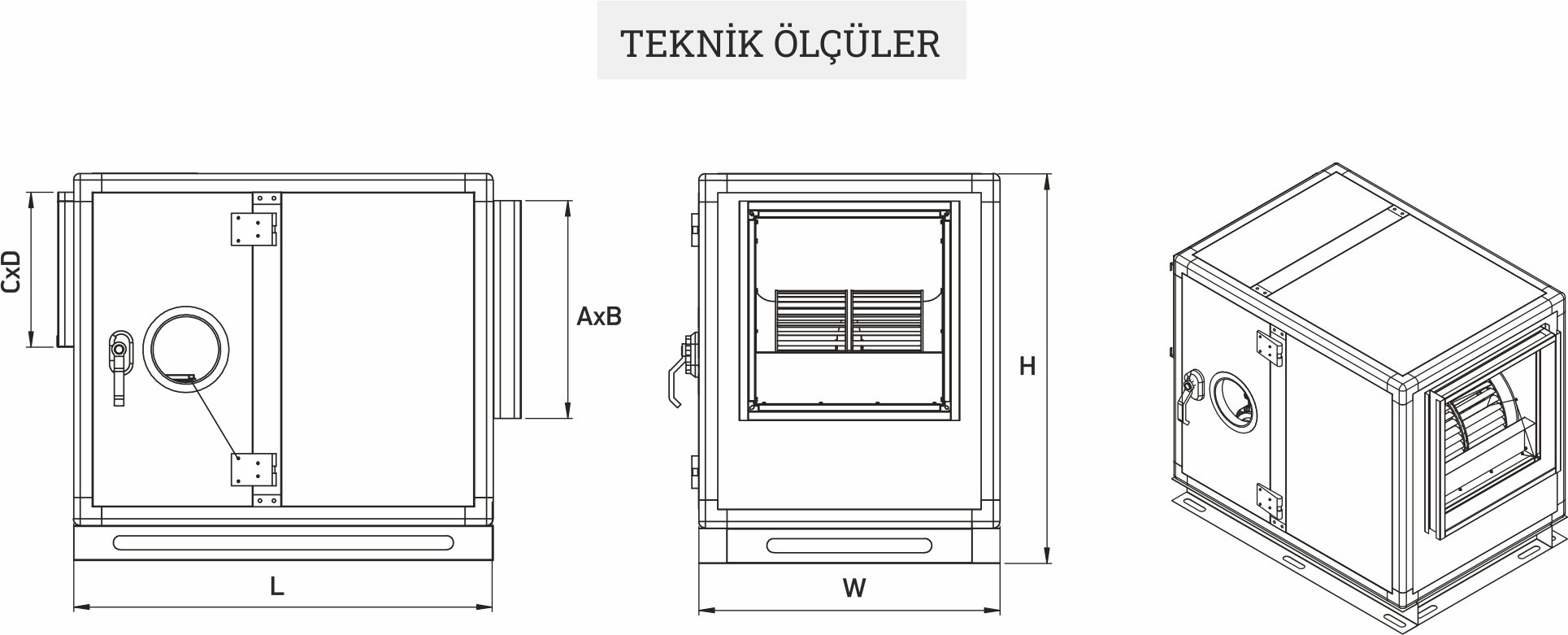

| Type/Code | Dimensions (mm) | ||||||
| L | W | H | A | B | C | D | |
| ERF-CAT-07/07 | 850 | 580 | 580 | 232 | 210 | 480 | 200 |
| ERF-CAT-09/09 | 950 | 700 | 700 | 293 | 262 | 600 | 250 |
| ERF-CAT-10/10 | 1.050 | 750 | 750 | 330 | 290 | 650 | 350 |
| ERF-CAT-12/12 | 1.100 | 850 | 850 | 400 | 340 | 750 | 400 |
| ERF-CAT-15/15 | 1.200 | 900 | 900 | 470 | 405 | 800 | 500 |
| ERF-CAT-18/18 | 1.240 | 1.000 | 1.000 | 580 | 480 | 900 | 550 |
