ERF-FAT

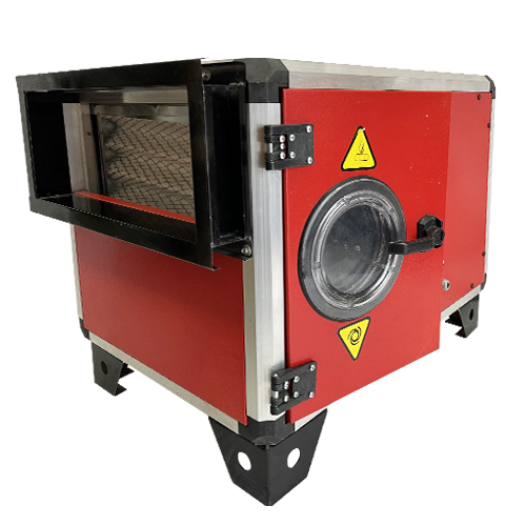

G4 FIBER CASSETTE FILTER, DOUBLE SUCTION, DENSE BLADES, RADIAL FAN CELL ASPIRATOR

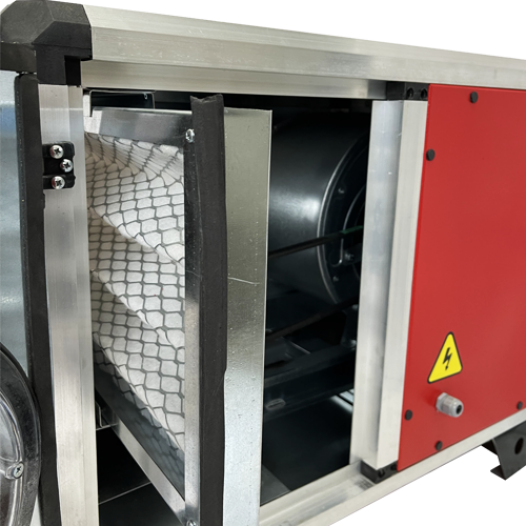

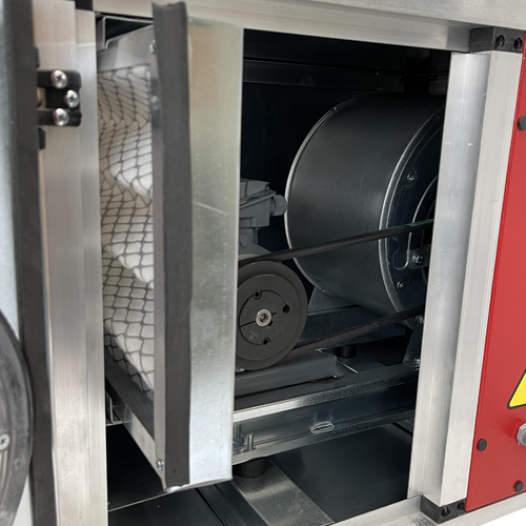

ERF-FAT double suction centrifugal cell fans are produced in different sizes between 1000-20.000m³/h flow rates, cell panels are 20mm thick and 70 kg/m³ density rock wool insulated, vibration-free operation, low energy and max. they provide efficiency.
SPEED CONTROL
It is obtained by belt pulley system.
USAGE AREAS
Workplaces, offices, factories, hospitals, restaurants, meeting rooms, supermarkets, shopping malls, etc.
| Type / Code | Fan | Electric Motor | Max. | Pressure Loss | G2 Metal Cassette | |||
| Volt | Power | RPM | Filter Dimensions | |||||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | ( mm ) | ||
| ERFFAT-07-1,00-T-4K | 07X07 | 380 | 1,00 | 0,75 | 1.410 | 2.250 | 300 | 540x475x48 mm |
| ERFFAT-07-1,50-T-4K | 1,50 | 1,10 | 1.430 | 2.800 | 300 | |||
| ERFFAT-09-1,50-T-4K | 09X09 | 380 | 1,50 | 1,10 | 1.430 | 4.000 | 250 | 640x575x48 mm |
| ERFFAT-09-2,00-T-4K | 2,00 | 1,50 | 1.430 | 5.000 | 125 | |||
| ERFFAT-10-2,00-T-4K | 10X10 | 380 | 2,00 | 1,50 | 1.430 | 5.500 | 225 | 345x625x48 mm |
| ERFFAT-10-3,00-T-4K | 3,00 | 2,20 | 1.435 | 6.500 | 225 | |||
| ERFFAT-12-3,00-T-4K | 12X12 | 380 | 3,00 | 2,20 | 1.435 | 7.500 | 300 | 395x725x48 mm |
| ERFFAT-12-4,00-T-4K | 4,00 | 3,00 | 1.435 | 8.500 | 350 | |||
| ERFFAT-15-4,00-T-4K | 15X15 | 380 | 4,00 | 3,00 | 1.435 | 10.000 | 350 | 420x775x48 mm |
| ERFFAT-15-5,50-T-4K | 5,50 | 4,00 | 1.455 | 12.000 | 350 | |||
| ERFFAT-18-7,50-T-4K | 18X18 | 380 | 7,50 | 5,50 | 1.465 | 18.000 | 250 | 470x875x48 mm |
| ERFFAT-18-10,0-T-4K | 10,0 | 7,50 | 1.465 | 20.000 | 275 | |||
| Type / Code | Air Flows ( m³/h ) Pressure Losses | |||||||||
| 100 Pa | 150 Pa | 200 Pa | 250 Pa | 300 Pa | 350 Pa | 450 Pa | 500 Pa | 600 Pa | 700 Pa | |
| ERFFAT-07-1,00-T-4K | 2.600 | 2.500 | 2.450 | 2.350 | 2.250 | 2.150 | 2.050 | 1.850 | 1.600 | 1.350 |
| ERFFAT-07-1,50-T-4K | 3.150 | 3.000 | 3.000 | 2.900 | 2.800 | 2.750 | 2.650 | 2.500 | 2.300 | 2.150 |
| ERFFAT-09-1,50-T-4K | 4.500 | 4.200 | 4.200 | 4.050 | 3.900 | 3.750 | 3.550 | 3.200 | 2.750 | 2.300 |
| ERFFAT-09-2,00-T-4K | 5.100 | 4.950 | 4.850 | 4.700 | 4.550 | 4.450 | 4.300 | 4.000 | 3.650 | 3.300 |
| ERFFAT-10-2,00-T-4K | 5.900 | 5.650 | 5.550 | 5.400 | 5.200 | 5.000 | 4.800 | 4.350 | 3.850 |
|
| ERFFAT-10-3,00-T-4K | 6.800 | 6.700 | 6.600 | 6.450 | 6.300 | 6.150 | 5.950 | 5.650 | 5.250 | 4.850 |
| ERFFAT-12-3,00-T-4K | 8.500 | 8.300 | 8.000 | 7.750 | 7.500 | 7.250 | 6.950 | 6.250 | 5.500 |
|
| ERFFAT-12-4,00-T-4K | 9.600 | 8.500 | 9.200 | 9.000 | 8.750 | 8.500 | 8.250 | 7.750 | 7.200 | 6.500 |
| ERFFAT-15-4,00-T-4K | 11.750 | 10.500 | 11.250 | 10.900 | 10.550 | 10.200 | 9.800 | 8.900 | 7.800 |
|
| ERFFAT-15-5,50-T-4K | 13.300 | 12.000 | 12.700 | 12.400 | 12.100 | 11.850 | 11.550 | 10.850 | 10.050 |
|
| ERFFAT-18-7,50-T-4K | 19.000 | 16.500 | 18.000 | 17.550 | 17.050 | 16.550 | 16.050 | 15.000 | 13.800 | 12.600 |
| ERFFAT-18-10,0-T-4K |
| 21.000 | 20.500 | 20.150 | 19.750 | 19.300 | 18.800 | 17.950 | 17.000 |
|

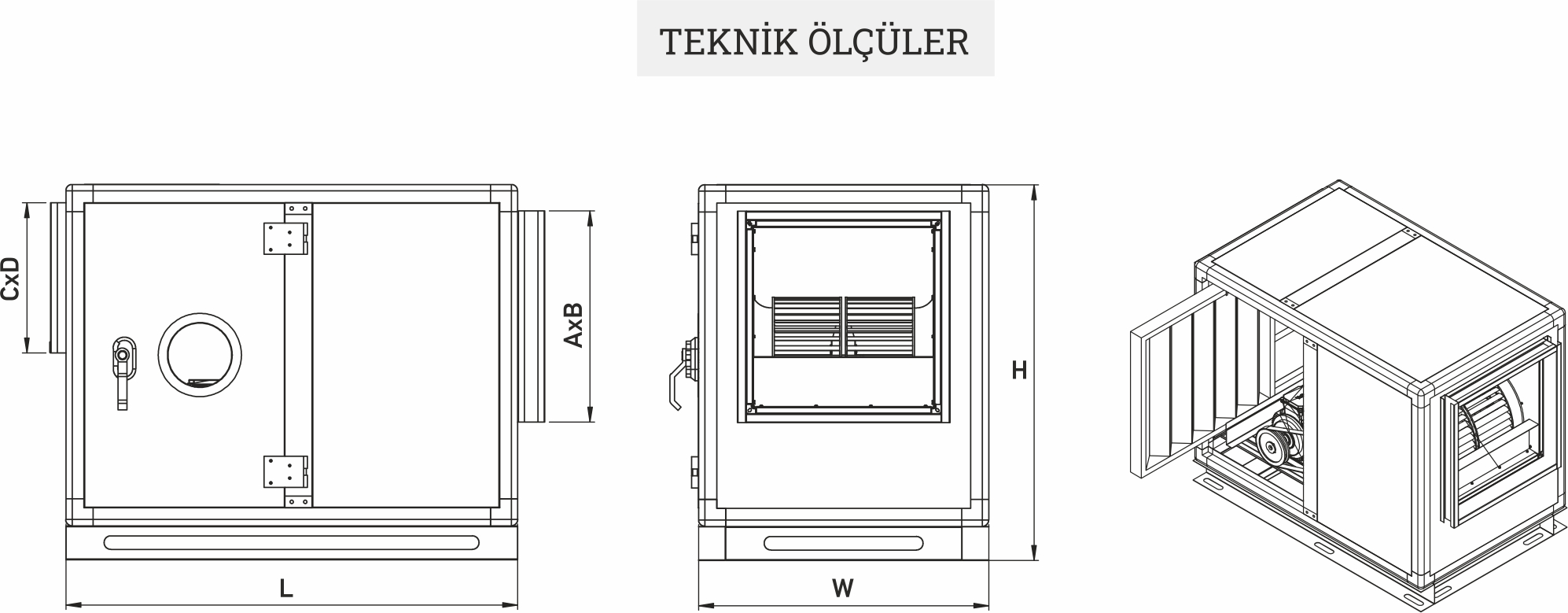

| TYPE / CODE | DIMENSIONS ( mm ) | ||||||
| L | W | H | A | B | C | D | |
| ERFFAT-07/07 | 1.000 | 600 | 600 | 232 | 210 | 500 | 200 |
| ERFFAT-09/09 | 1.100 | 700 | 700 | 293 | 262 | 600 | 250 |
| ERFFAT-10/10 | 1.200 | 750 | 750 | 330 | 290 | 650 | 350 |
| ERFFAT-12/12 | 1.250 | 850 | 850 | 400 | 340 | 750 | 400 |
| ERFFAT-15/15 | 1.350 | 900 | 900 | 470 | 405 | 800 | 500 |
| ERFFAT-18/18 | 1.450 | 1.000 | 1.000 | 560 | 480 | 900 | 550 |
