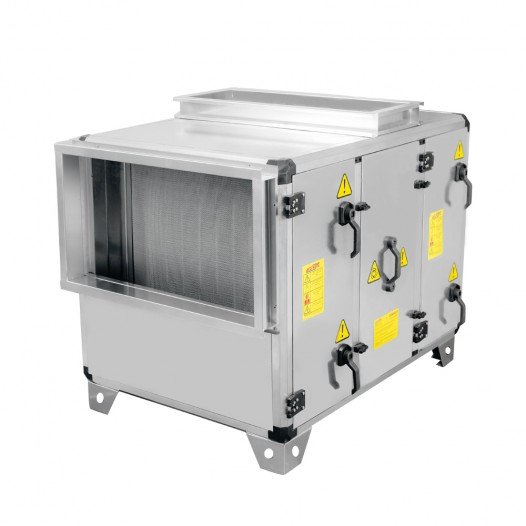

ERF-TRF
CASSETTE TYPE METAL FILTER, DIRECT, COUPLED MOTOR, SQUARE BLADES, SINGLE SUCTION, 3 SECTION CELL ASPIRATOR
ERF-TRF, single suction centrifugal cell fans are produced in different sizes between 2.500m³/h and 20.000 m³/h flow rates. Cell panels are 20 mm thick and 70 kg/m³ density rock wool insulated. Kitchen, hood, etc. It is the most suitable solution for ventilating spaces that may contain oily air. There is a G2 metal cassette filter inside.
Speed Control
They can be provided with a frequency inverter.
Usage Areas
Workplaces, offices, factories, hospitals, restaurants, meeting rooms, supermarkets, shopping malls, kitchens, dining halls, factories, hospitals, restaurants, cafeterias, etc.
| Type / Code | Electric Motor | Max. Air Flow | Max. Pressure Loss | |||
| Volt | Power | RPM | ||||
| (V) | (HP) | (kW) | (d/d) | m3 / h | Pa | |
| ERF-TRF-1.00-T-4K | 380 | 1.00 | 0.75 | 1410 | 2500 | 300 |
| ERF-TRF-1.50-T-4K | 380 | 1.50 | 1.10 | 1430 | 4000 | 350 |
| ERF-TRF-2.00-T-4K | 380 | 2.00 | 1.50 | 1430 | 6000 | 400 |
| ERF-TRF-3.00-T-4K | 380 | 3.00 | 2.20 | 1435 | 8000 | 450 |
| ERF-TRF-4.00-T-4K | 380 | 4.00 | 3.00 | 1435 | 10000 | 500 |
| ERF-TRF-5.50-T-4K | 380 | 5.50 | 4.00 | 1455 | 12000 | 550 |
| ERF-TRF-7.50-T-4K | 380 | 7.50 | 5.50 | 1465 | 16000 | 600 |
| ERF-TRF-10.00-T-4K | 380 | 10.00 | 7.50 | 1465 | 20000 | 650 |

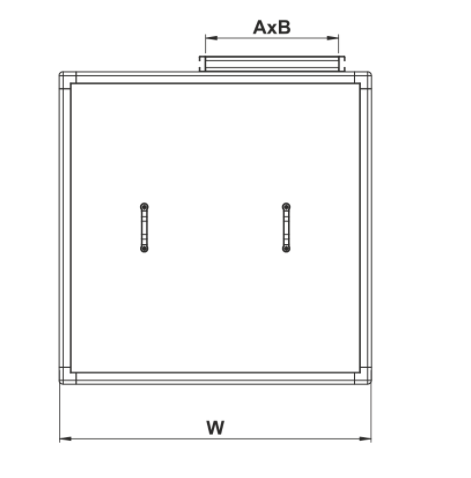

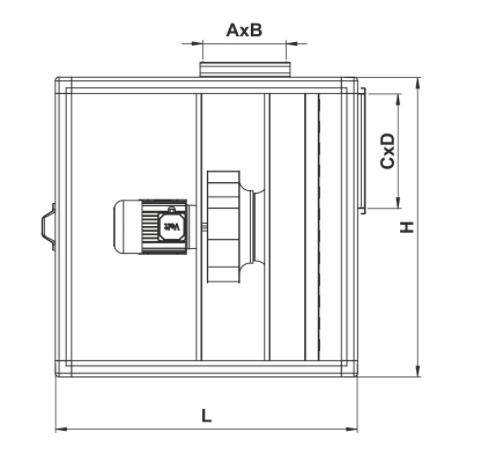

| TYPE / CODE | L | W | H | A | B | C | D |
| ERF-TRF-1,00 | 900 | 670 | 670 | 150 | 570 | 570 | 300 |
| ERF-TRF-1,50 | 900 | 720 | 720 | 200 | 620 | 620 | 350 |
| ERF-TRF-2,00 | 1000 | 770 | 770 | 200 | 670 | 680 | 350 |
| ERF-TRF-3,00 | 1100 | 820 | 820 | 250 | 720 | 720 | 400 |
| ERF-TRF-4,00 | 1100 | 870 | 870 | 250 | 770 | 770 | 400 |
| ERF-TRF-5,50 | 1250 | 920 | 920 | 280 | 820 | 820 | 450 |
| ERF-TRF-7,50 | 1350 | 970 | 970 | 300 | 870 | 870 | 450 |
| ERF-TRF-10,0 | 1350 | 970 | 970 | 350 | 870 | 870 | 500 |
