HEXP

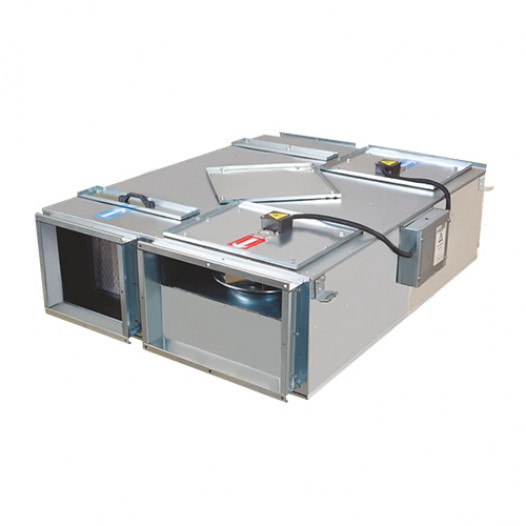

HEAT RECOVERY DEVICES WITH ALUMINUM EXCHANGER, CROSS-CURRENT PLUG FAN
Heat recovery devices, which can be used in the comfort and ventilation of all kinds of facilities, provide fresh air to the environment while exhausting the ambient air. It enables the fresh air to be preheated / cooled by making use of the heat energy of the exhaust air thrown out.
Thus, it prevents negative effects on the ambient temperature.
| Type / Code | Electric Motor | Air Flow Max. | DIMENSIONS ( mm ) | ||||||
| Volt | Power | RPM | |||||||
| ( V ) | ( W ) | ( d/d ) | ( m³/h ) | A | B | C | F x D | E x D | |
| EGKP-05-M-2K | 220 | 2x110 | 2.600 | 500 | 1.000 | 800 | 260 | 320x200 | 180x200 |
| EGKP-07-M-2K | 220 | 2x135 | 2.660 | 750 | 1.100 | 900 | 315 | 455x220 | 200x220 |
| EGKP-10-M-4K | 220 | 2x210 | 1.400 | 1.000 | 1.200 | 1.000 | 365 | 455x270 | 300x270 |
| EGKP-20-M-4K | 220 | 2x400 | 1.375 | 2.000 | 1.500 | 1.200 | 415 | 555x320 | 400x320 |
| EGKP-30-M-4K | 220 | 2x430 | 1.380 | 3.000 | 1.700 | 1.200 | 475 | 555x380 | 400x380 |
| EGKP-40-M-4K | 220 | 2x600 | 1.335 | 4.000 | 1.800 | 1.300 | 515 | 655x420 | 420x400 |
| EGKP-50-M-4K | 220 | 2x630 | 1.340 | 5.000 | 2.000 | 1.500 | 615 | 855x520 | 400x520 |
