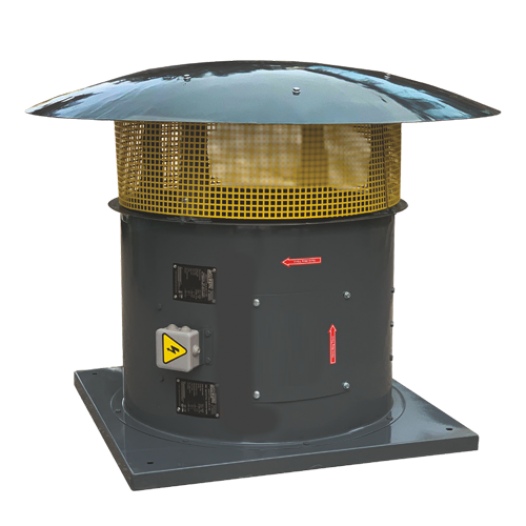

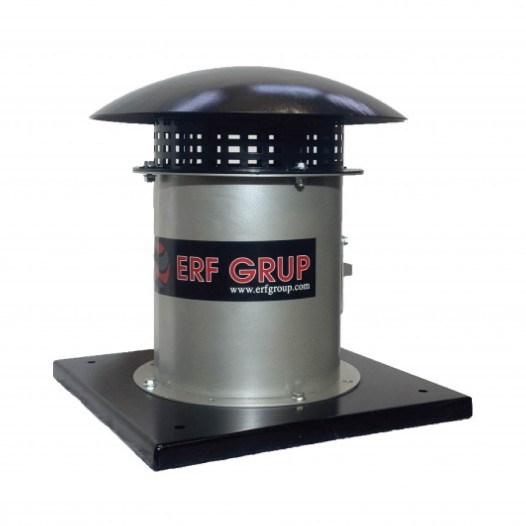

ROOF TYPE PRESSURIZED SMOKE EXHAUST FAN
Elevate safety and performance with the RAKC Roof Type Pressurized Smoke Exhaust Fan. Available from 250 to 1200 millimeters, this fan delivers exceptional airflow, swiftly evacuating hazardous fumes and smoke. Compatible with F300 and F400 motors, it offers versatile power.
Constructed from robust steel, with an option for stainless steel for corrosive environments, the RAKC excels in chemical settings. Featuring protective hats and wires, it stands resilient against rain, dust, and wind. Please contact our team for more information.
| Type | Electrical Motor | Max Air Flow | |||
| Volt | Power | RPM | |||
| (V) | (HP) | (kW) | (dd) | (m3/h) | |
| RAKC-400-T2-0,75 | 380 | 1 | 0,75 | 2.860 | 3.600 |
| RAKC-450-T2-1,50 | 380 | 2 | 1,5 | 2.900 | 6.250 |
| RAKC-500-T4-0,75 | 380 | 1 | 0,75 | 1.410 | 10.300 |
| RAKC-560-T4-1,10 | 380 | 1,5 | 1,1 | 1.430 | 13.000 |
| RAKC-630-T4-1,50 | 380 | 2 | 1,5 | 1.430 | 18.500 |
| RAKC-710-T4-4,00 | 380 | 5,5 | 4 | 1.455 | 31.500 |
| RAKC-800-T4-7,50 | 380 | 10 | 7,5 | 1.465 | 42.500 |
| RAKC-900-T4-15,0 | 380 | 20 | 15 | 1.470 | 61.000 |
| RAKC-1000-T4-15,0 | 380 | 20 | 15 | 1.470 | 77.000 |
| RAKC-1100-T4-18,5 | 380 | 25 | 18,5 | 1.475 | 83.000 |
| RAKC-1200-T4-30,0 | 380 | 40 | 30 | 1.475 | 100.000 |

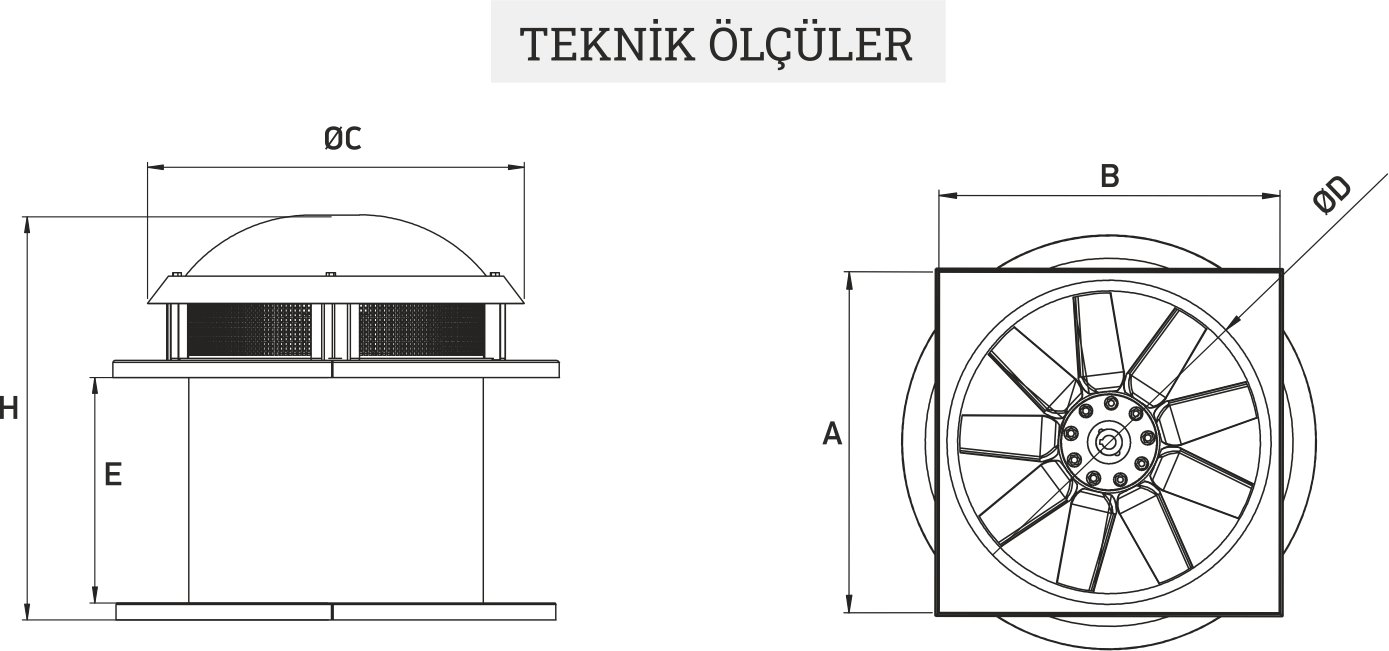

| Type / Code | Dimensions (mm) | |||||
| A | B | ØC | ØD | E | H | |
| RAKC-400-T2-0,75 | 630 | 630 | 700 | 400 | 470 | 880 |
| RAKC-450-T2-1,50 | 710 | 710 | 700 | 450 | 470 | 880 |
| RAKC-500-T4-0,75 | 740 | 740 | 840 | 500 | 580 | 1030 |
| RAKC-560-T4-1,10 | 800 | 800 | 1150 | 560 | 580 | 1030 |
| RAKC-630-T4-1,50 | 850 | 850 | 1150 | 630 | 600 | 1160 |
| RAKC-710-T4-4,00 | 850 | 850 | 1150 | 710 | 700 | 1300 |
| RAKC-800-T4-7,50 | 920 | 920 | 1150 | 800 | 775 | 1300 |
| RAKC-900-T4-15,0 | 1000 | 1000 | 1150 | 900 | 775 | 1375 |
| RAKC-1000-T4-15,0 | 1100 | 1100 | 1450 | 1000 | 850 | 1450 |
| RAKC-1100-T4-18,5 | 1130 | 1130 | 1450 | 1100 | 850 | 1450 |
| RAKC-1200-T4-30,0 | 1430 | 1430 | 1450 | 1200 | 950 | 1550 |
