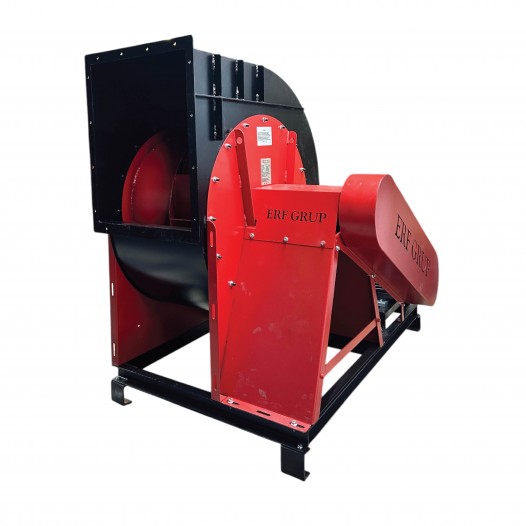

BACKWARDS CURVED, SPARSE BLADE, BELT DRIVE, SINGLE SUCTION, RADIAL FANS
SBKK, designed for low and medium pressure systems, can be used in all kinds of facility ventilation. Thanks to its sparse channel structure, propeller cleaning is easy. It has the ability to operate at different speeds and meet different flow and pressure values, thanks to its belt-pulley mechanism drive.
| Type / Code | Electric Motor | Air Flow | Pressure Loss | |||
| Volt | Power | RPM | ( Max.) | ( Max. ) | ||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | |
| SBKK-0,50-T-4K | 380 | 0,50 | 0,37 | 1.380 | 3.000 | 400 |
| SBKK-1,00-T-4K | 380 | 1,00 | 0,75 | 1.410 | 4.800 | 500 |
| SBKK-1,50-T-4K | 380 | 1,50 | 1,10 | 1.430 | 6.000 | 600 |
| SBKK-2,00-T-4K | 380 | 2,00 | 1,50 | 1.430 | 8.000 | 650 |
| SBKK-3,00-T-4K | 380 | 3,00 | 2,20 | 1.435 | 9.000 | 700 |
| SBKK-4,00-T-4K | 380 | 4,00 | 3,00 | 1.435 | 12.000 | 1.000 |
| SBKK-5,50-T-4K | 380 | 5,50 | 4,00 | 1.455 | 15.000 | 1.100 |
| SBKK-7,50-T-4K | 380 | 7,50 | 5,50 | 1.465 | 18.000 | 1.200 |
| SBKK-10,0-T-4K | 380 | 10,0 | 7,50 | 1.465 | 21.000 | 1.500 |
| SBKK-15,0-T-4K | 380 | 15,0 | 11,0 | 1.470 | 24.500 | 1.600 |
| SBKK-20,0-T-4K | 380 | 20,0 | 15,0 | 1.470 | 27.000 | 1.800 |
| SBKK-25,0-T-4K | 380 | 25,0 | 18,5 | 1.475 | 32.000 | 2.000 |
| SBKK-30,0-T-4K | 380 | 30,0 | 22,0 | 1.475 | 37.500 | 2.000 |
| Type / Code | DIMENSIONS (mm) | |||||
| A | B | C | D | E | F | |
| SBKK-0,50-T-4K | 500 | 600 | 610 | Ø 200 | 200 | 180 |
| SBKK-1,00-T-4K | 565 | 640 | 730 | Ø 300 | 260 | 200 |
| SBKK-1,50-T-4K | 655 | 690 | 805 | Ø 350 | 270 | 230 |
| SBKK-2,00-T-4K | 690 | 735 | 855 | Ø 350 | 300 | 250 |
| SBKK-3,00-T-4K | 785 | 815 | 990 | Ø 400 | 400 | 300 |
| SBKK-4,00-T-4K | 875 | 865 | 1.030 | Ø 450 | 450 | 350 |
| SBKK-5,50-T-4K | 920 | 935 | 1.080 | Ø 500 | 500 | 400 |
| SBKK-7,50-T-4K | 975 | 1.025 | 1.210 | Ø 600 | 600 | 450 |
| SBKK-10,0-T-4K | 1.035 | 1.065 | 1.220 | Ø 600 | 600 | 500 |
| SBKK-15,0-T-4K | 1.080 | 1.170 | 1.380 | Ø 700 | 700 | 550 |
| SBKK-20,0-T-4K | 1.200 | 1.220 | 1.485 | Ø 750 | 800 | 600 |
| SBKK-25,0-T-4K | 1.260 | 1.355 | 1.535 | Ø 800 | 800 | 600 |
| SBKK-30,0-T-4K | 1.350 | 1.475 | 1.650 | Ø 850 | 850 | 600 |
