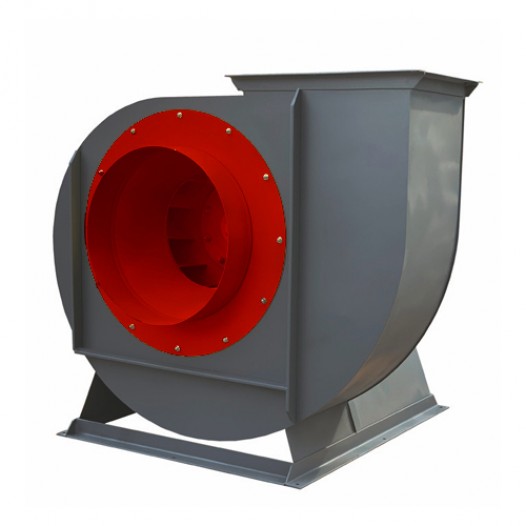

BACKWARD CURVED AND SPARSE BLADES, DIRECTLY COUPLED, SINGLE SUCTION, RADIAL FANS
SBPR medium and high pressure systems, these fans can be used in any facility ventilation. Especially suitable for dust collection systems. Due to the sparse blade structure, propeller cleaning is easy.
They overcome strong pressure losses thanks to their high speed.

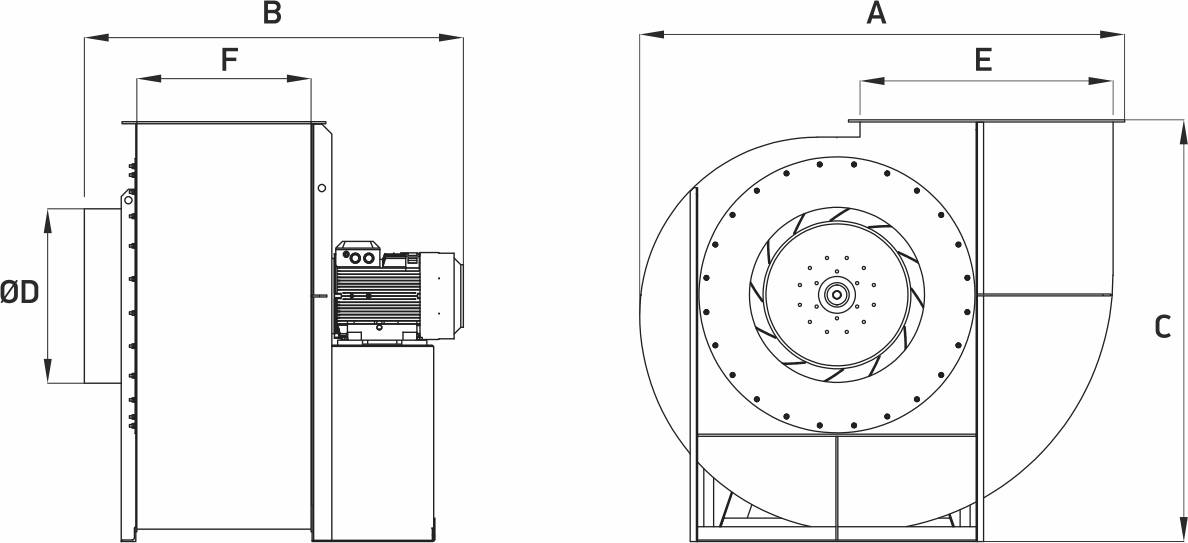

| SBPR | CENTRIFUGAL FANS (Medium-High Pressure, Backward Curved and Sparse Blades, DIRECT COUPLED Motor, Single Suction) | DIMENSIONS ( mm ) | ||||||||||
| Type / Code | Electric Motor | Air Flow | Pressure Loss | |||||||||
| Volt | Power | RPM | ( Max. ) | ( Max. ) | ||||||||
| ( V ) | ( HP ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | A | B | C | D | E | F | |
| SBPR-352-3,00-T-2K | 380 | 3,00 | 2,20 | 2.880 | 2500 | 1600 | 735 | 700 | 715 | Ø 360 | 355 | 250 |
| SBPR-351-4,00-T-2K | 380 | 4,00 | 3,00 | 2.880 | 2750 | 1800 | 735 | 715 | 715 | Ø 360 | 355 | 250 |
| SBPR-402-5,50-T-2K | 380 | 5,50 | 4,00 | 2.880 | 3500 | 2000 | 818 | 768 | 800 | Ø 405 | 400 | 280 |
| SBPR-401-7,50-T-2K | 380 | 7,50 | 5,50 | 2.900 | 4000 | 2200 | 818 | 878 | 800 | Ø 405 | 400 | 280 |
| SBPR-452-10,0-T-2K | 380 | 10,00 | 7,50 | 2.910 | 5000 | 2500 | 910 | 915 | 895 | Ø 455 | 450 | 315 |
| SBPR-451-15,0-T-2K | 380 | 15,00 | 11,00 | 2.945 | 6000 | 2800 | 910 | 935 | 895 | Ø 455 | 450 | 355 |
| SBPR-502-20,0-T-2K | 380 | 20,00 | 15,00 | 2.945 | 7000 | 3200 | 1.010 | 975 | 985 | Ø 505 | 500 | 355 |
| SBPR-501-25,0-T-2K | 380 | 25,00 | 18,50 | 2.950 | 8000 | 3500 | 1.010 | 1.075 | 985 | Ø 505 | 500 | 355 |
