BACKWARD CURVED AND SPARSE BLADES, DOUBLE SUCTION, INTERNAL CELL RADIAL FANS

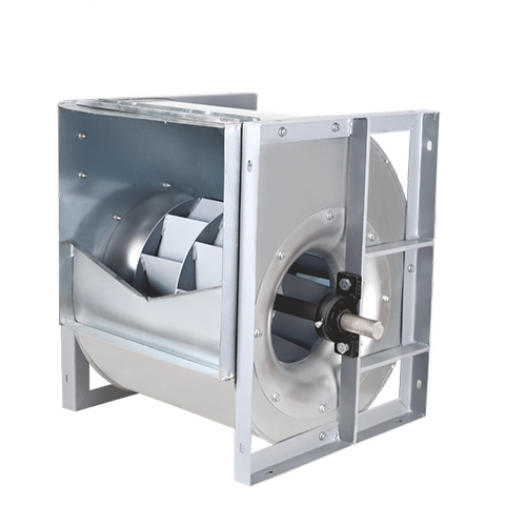

SCRD series fans are double inlet radial fans with forward curved blades. They can be used for suction and discharge applications in commercial and industrial HVAC systems between highly efficient overloading and flow rates of 4,500 m3/h. They provide maximum efficiency with low energy.

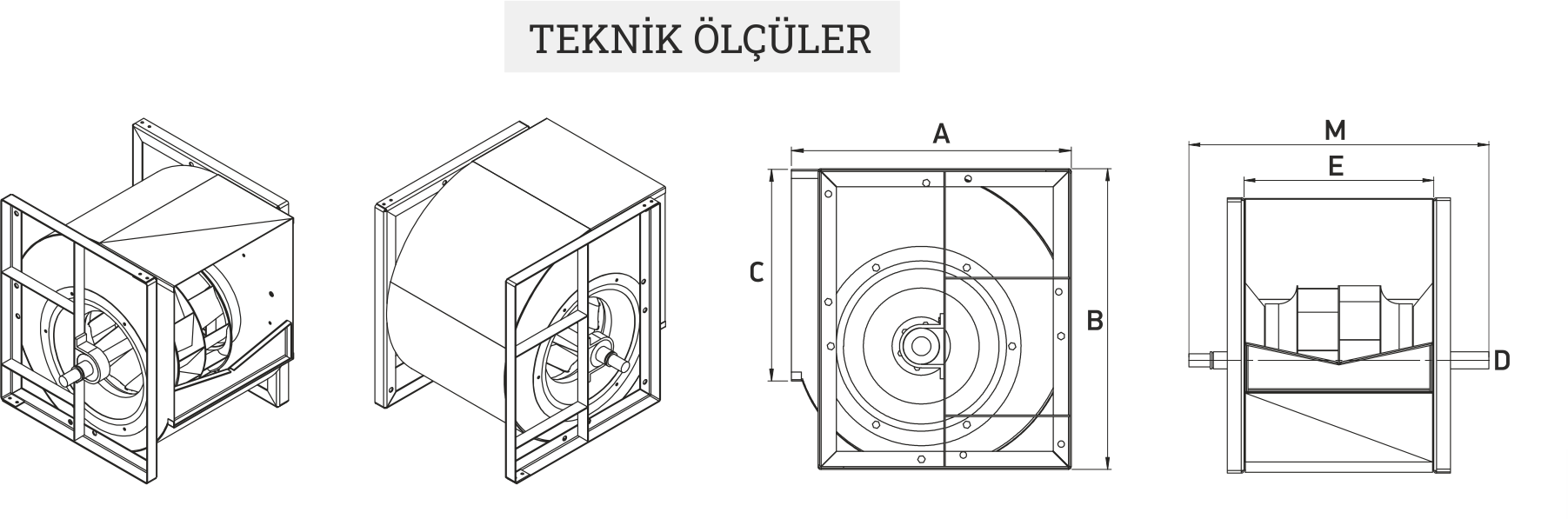

| SCRD | CENTRIFUGAL FANS (Low-Medium Pressure, Backward Curved and Sparse Blades, Double Suction, Cell Indoor Fan) | DIMENSIONS ( mm ) | |||||||||
| Type / Code | Max. Working Point | Air Flow | Pressure Loss | ||||||||
| Volt | Power | RPM | ( Max ) | ( Max ) | |||||||
| ( V ) | ( kW ) | ( d/d ) | ( m³/h ) | ( Pa ) | A | B | C | D | E | M | |
| SCRD-280 | 380 | 5,50 | 3.800 | 7.000 | 2.000 | 466 | 518 | 361 | Ø 30 | 361 | 555 |
| SCRD-315 | 380 | 5,50 | 3.300 | 9.500 | 2.000 | 518 | 578 | 404 | Ø 30 | 404 | 600 |
| SCRD-355 | 380 | 7,50 | 3.100 | 11.900 | 2.200 | 578 | 655 | 453 | Ø 35 | 453 | 675 |
| SCRD-400 | 380 | 7,50 | 2.500 | 15.400 | 2.100 | 649 | 736 | 507 | Ø 35 | 507 | 725 |
| SCRD-450 | 380 | 11,0 | 2.300 | 19.950 | 2.000 | 726 | 827 | 569 | Ø 40 | 569 | 815 |
| SCRD-500 | 380 | 11,0 | 2.000 | 26.900 | 1.800 | 800 | 918 | 638 | Ø 40 | 638 | 885 |
| SCRD-560 | 380 | 15,0 | 1.850 | 30.000 | 1.900 | 891 | 1.030 | 715 | Ø 50 | 715 | 1.000 |
| SCRD-630 | 380 | 15,0 | 1.500 | 37.500 | 1.600 | 996 | 1.157 | 801 | Ø 50 | 801 | 1.085 |
| SCRD-710 | 380 | 18,5 | 1.200 | 47.000 | 1.300 | 1.117 | 1.303 | 898 | Ø 50 | 898 | 1.255 |
